NovaStar 5 Training Lesson / Stations and Points Calibration Computation

This documentation is under development

Overview
Log In
NovaStar5 Stations
NovaStar5 Points

Overview

This lesson explains how to define a new station, define a new point corresponding to data collection sensor, and configure the calibration data so that sensor data are properly collected.

Estimated completion time: ? minutes

Log In

Need to mark out the address for the machine so that people don't try to hit that machine.

Title 1 (see also the full-size image)

NovaStar5 Base Station Software

Menu on left side

Title 2 (see also the full-size image)

NovaStar5 Stations

Station List
Station Poll
Station Type List

When a station is created you must assign a type so we usually define station types first.

Station Poll allows for manual polling of stations.

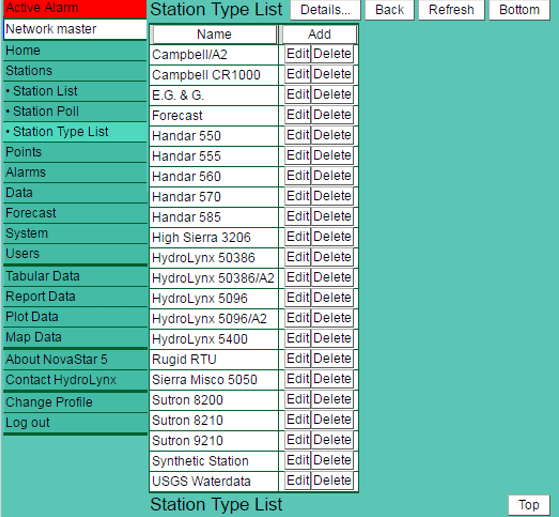

Station Type List

Title 3 (see also the full-size image)

Do we need a separate station type for each type of transmitter ... no.

We do need a separate station type for different telemetry modes:

Legacy ALERT
ALERT2
Satellite Orbcomm
Satellite Hughes Net
GOES
Web Page

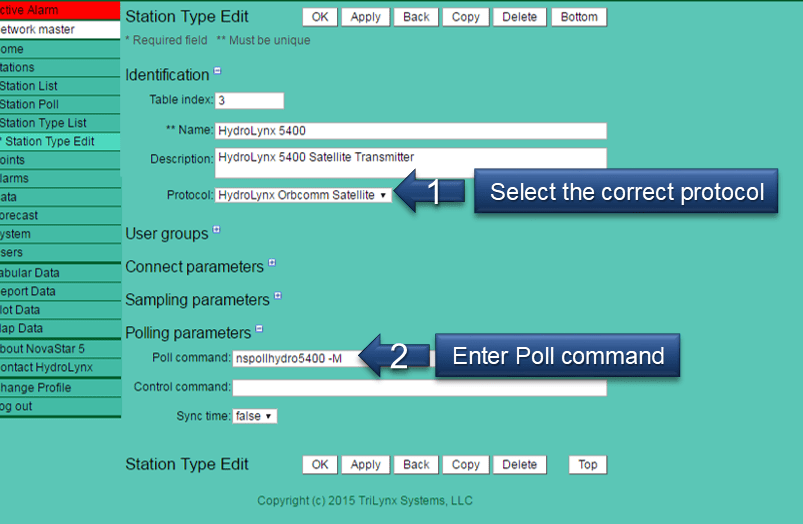

Station Type Edit

Station List Details

Allows one to toggle on and off the various parameters for a station and provides sorting functionality

Title 9 (see also the full-size image)

Station List Add and Edit Buttons

Title 10 (see also the full-size image)

Station List Add

Puts the user into a Blank Station Add/Edit Screen ... .

Enter new station parameters and then click on Apply... .

Title 11 (see also the full-size image)

Station List Edit, Copy, and Apply

When finished with edits must click on the Apply button for the edits to take place.

Puts the user into the Station Edit screen for that station ... .

Click on the Copy button to make a copy of this station then we can edit from there to create a new station ... .

Title 12 (see also the full-size image)

Station Edit

Legacy ALERT

Title 13 (see also the full-size image)

ALERT2

Title 14 (see also the full-size image)

USGS Web Page

Title 15 (see also the full-size image)

Title 16 (see also the full-size image

Satellite

Title 17 (see also the full-size image)

NovaStar5 Points

Point List
Point Type List

Points represent sensors that are installed at a station. NovaStar5 database tracks data time series through point ID. Since the point type is required to define a point we usually define point types first.

Point Type

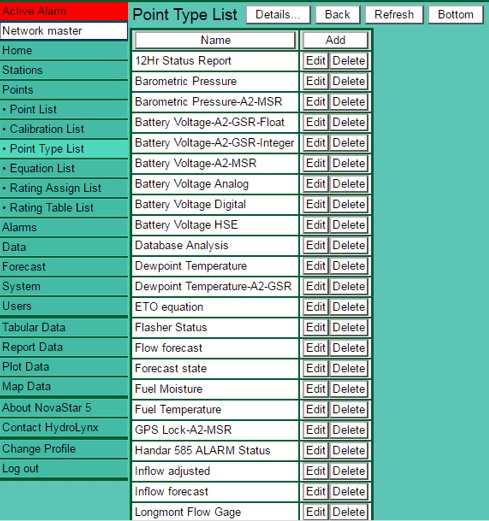

Point Type List

A listing of all the point types defined in the system.

Title 18 (see also the full-size image)

Point Class Precipitation - Counter

Title 19 (see also the full-size image)

Point Type Water Level - Analog

Title 20 (see also the full-size image)

Point Type ALERT Wind - Direction

Title 21 (see also the full-size image)

Point Type ALERT Wind - Speed

Title 22 (see also the full-size image)

Point Type Status

Title 23 (see also the full-size image)

Point List

Title 24 (see also the full-size image)

Point List Details

Allows one to toggle on and off the various attributes for a point and provides sorting functionality.

Title 25 (see also the full-size image)

Point List Add/Edit

Title 26 (see also the full-size image)

Point List Add

Puts the user into a Blank Point Add Screen... .

Enter new point parameters and then click on Apply to save.

Title 27 (see also the full-size image)

Point Edit

Puts the user into the Point Edit screen for that station ... .

Click on the Copy button to make a copy of this point then we can edit from there to create a new point ... .
When finished with edits must click on the Apply button for the edits to take place.

Title 28 (see also the full-size image)

Parameters - ALERT - Precipitation

Select point type.
Remote ID - the ID being transmitted from the field.
Point ID - the ID in the NovaStar5 database that the data should be written to ... typically the same as the Remote ID.

Title 29 (see also the full-size image)

Parameters - ALERT2 - Precipitation

Select point type.
Remote ID - the ID being transmitted from the field ... in the case of ALERT2 is the Sensor ID.
Point ID - the ID in the NovaStar5 database that the data should be written to ... typically the same as the Remote ID.

Title 30 (see also the full-size image)

Parameters - ALERT - Water Level

Select point type.
Remote ID - the ID being transmitted from the field.
Point ID - the ID in the NovaStar5 database that the data should be written to ... typically the same as the Remote ID.

Title 31 (see also the full-size image)

Parameters - ALERT2 - Water Level

Select point type.
Remote ID - the ID being transmitted from the field ... in the case of ALERT2 is the Sensor ID.
Point ID - the ID in the NovaStar5 database that the data should be written to ... typically the same as the Remote ID.

Title 32 (see also the full-size image)

Data Checking

Change - maximum allowable change from last value in engineering units.
Upper limit - maximum value allowed
Lower limit - minimum value allowed
No report interval - maximum allowable time between reports
Change limit/interval - maximum allowable change in specified interval
Compress interval - remove duplicate reports within this interval from time series
Out of service - take a point out-of-service rather than the entire station

Title 33 (see also the full-size image)

Revalidate

Quiet - debug level of output shown ... how verbose do you want the output
Force - force an update of all data ... default update only when changed
Digits - number of digits to right of decimal point for scaled data display
Computation - re-compute rating after validation is done

Title 34 (see also the full-size image)

Title 35 (see also the full-size image)

Title 36 (see also the full-size image)

Calibration

Every sensor has an associated calibration

Legacy - used to convert raw integer data to engineering value
ALERT2 - may not be needed but must still enter values

Important buttons - Add and List

Title 37 (see also the full-size image)

Calibration List

Provides a listing of all the historical calibrations that were used for this sensor. Recalibration for a historical period would apply each calibration over its effective time. Each calibration entry is editable and can be changed.

Title 38 (see also the full-size image)

Calibration Add

Select the Point.

Multiplier - multiplied by raw value (PT calibration = slope)
Adder - added to result (PT calibration = offset)
Base value - added to result (level sensor = reference datum)
Time - effective time

We always add new calibrations so we maintain an accurate history of the various calibration changes and we can always re-calibrate a historical period.

Title 39 (see also the full-size image)

Computation/Rating

Every sensor can have associated computations performed after the data are calibrated.

Rain sensors - computations include incremental rain, storm rain total, season total.
Level sensors - computation may include stage-discharge ratings.

The term computation and rating are used interchangeably.

Title 40 (see also the full-size image)

Computation

Computation - Rain

Incremental rainfall
Storm total rainfall
Season total rainfall

Title 41 (see also the full-size image)

Rating Assign

Incremental Rainfall

Select point
Select computation
Enter SHEF code
Number - next available rating number for point
Name
Time

Title 42 (see also the full-size image)

Season Total Rainfall

Select point
Select computation
Enter SHEF code
Number - next available rating number for point
Name
Time - this defines when the season starts!

Title 43 (see also the full-size image)

Storm Total Rainfall

Select point
Select computation
Interval - time interval for no rain used to reset storm total to zero
Enter SHEF code
Number - next available rating number for point
Name
Time

Title 44 (see also the full-size image)

Water Level

Select point
Select computation
Enter SHEF code
Number - next available rating number for point
Name
Table - assign the correct rating table
Effective Time - we can re-compute flows for a historic period because each rating knows over what time interval it is valid
Edit button
